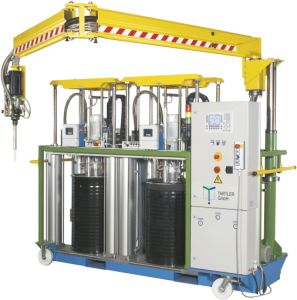

Nodopox 200 VS AR | 2K Meter Mix and Dispense Machine

Dosing system for the efficient processing of high-viscosity and pasty resins with direct supply from delivery containers

System for processing silicone, polyurethane or epoxy resin with output of pastes up to 5 kg/min and of adhesive up to 20 kg/min (depending on viscosity, mixing ratio and tube lengths).


Technical data


Silicone mould manufacture

Pasty adhesives in large quantities

Bonding of large structures

Metering pump drive

Frequency controlled motors for A + B from 0.37 to 3.0 kW

Mixing ratio

100:5 up to 100:25 (depends on pump combination)

special versions possible


From 0,5 kg/min up to 5 kg/min at MV 100:10 (depends on the viscosities)


Siemens SPS with control panel at control desk

Shot size mode

Pot life alarm

Operated by manual control box or mixing head handle

Option: Touch screen, modem


200 l delivery drum (A) 200 l delivery drum (B) for filling unit 30/60 l pressure tank (B)


Available for tanks, hose and mixing head

Compressed air

400 l/min, 6-8 bar

Power supply

380/415 Volt, 50 Hz

Hose length

3 m, 5 m or on special request

Mixing head

LC 6 or LC 8 with frequency controller

Additional equipment

Special extrusion pump for component A for pulsation-free metering

Smaller version for 25 l drum available
